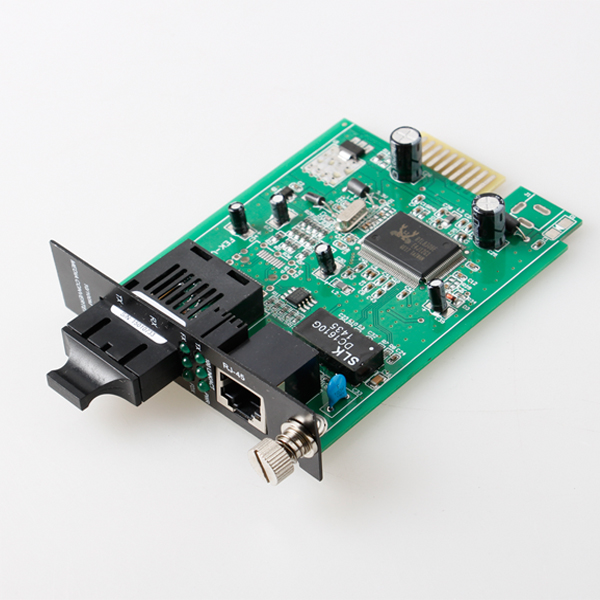

ZK-FE-20

Cache is 512KB, MAC address table is 4KB
Ethernet 10Base-T or 100Base-Tx to 100Base-Fx fiber media converter
Supports full-duplex or half-duplex backpressure flow control work, and with auto-negotiation capability
TP port supports 100Mbps, 10Mbps, two TP port could match different rate (When full-duplex bandwidth up to 2*Mbps)
Provide remote link loss diagnostics,TP port and FX port link connection diagnostic,dynamic data transmission,full / half duplex,rate indicator
Provide 1 RJ-45 port , and support automatically cross-recognition, connected with switch,
FX port with good feature, strong compatibility and high reliability, can be well compatible with Cisco, Nortel, 3COM etc

Application

◆ Harsh industrial environment or higher requirements for lightning protection

◆ Urban Intelligent Traffic Monitoring System (ITS), Safe City

◆ highway monitoring system, electronic road monitoring, network cameras

◆ large industrial enterprise security monitoring systems, network multifunction system

◆ Remote multimedia teaching / campus monitoring, remote network video conference system

DATASHEET

Technical parameter list
Product Name	10/100M Single Mode Single Fiber Card-type Media Converter
Product Model	ZK-FE-20
Connector Type	1x copper cable RJ45 port +1x single fiber SC port
Bandwidth	Fiber Bandwidth:155Mbps; Ethernet Bandwidth: 1.6Gbps (non-blocking)
MTBF	190,000 hours (about 21 years)
Forwarding Mode	Store and forward
Network Protocol	IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI;
Optical Fiber	Single mode dual fiber, SC fiber port
Optical Distance	20km
Wavelength	1310&1550nm
LED Display	System, Power, Connecting, working status
Power Consumption	2.5W
Dimension	11.6×8.5×2.5cm
Transmission Distance	20Km
Working Environment	Working Temperature:-20°～ 75°C; Storage Temperature: -40°～ 85°C; Working Humidity: 5%～90%, non-condensing; Storage Humidity: 5%～95%, non-condensing; Operational Altitude: 3000m (10,000ft); Storage Altitude: 3000m (10,000ft);
Certification	CE,FCC,Rohs
Warranty	2 year warranty
